Item No. :MZJ-RSP-104
Magnification:1-10X
Objective lens diameter:24mm
Eyepiece diameter:38mm
Lens coating:FMC Multi-Layer Coating
Tube Size:30mm
Leaf spring form:spring seat
Material:6061 Aerospace Aluminum
Turret Material:Fancy Brass Screws
Product length:280mm / 11.02 in
Net product weight:18.48oz，524g
Whether one-piece tube:Yes
Appearance color:Black Matte
Mounting Length:175mm
Reticle Focal Plane:2nd Focal Plane

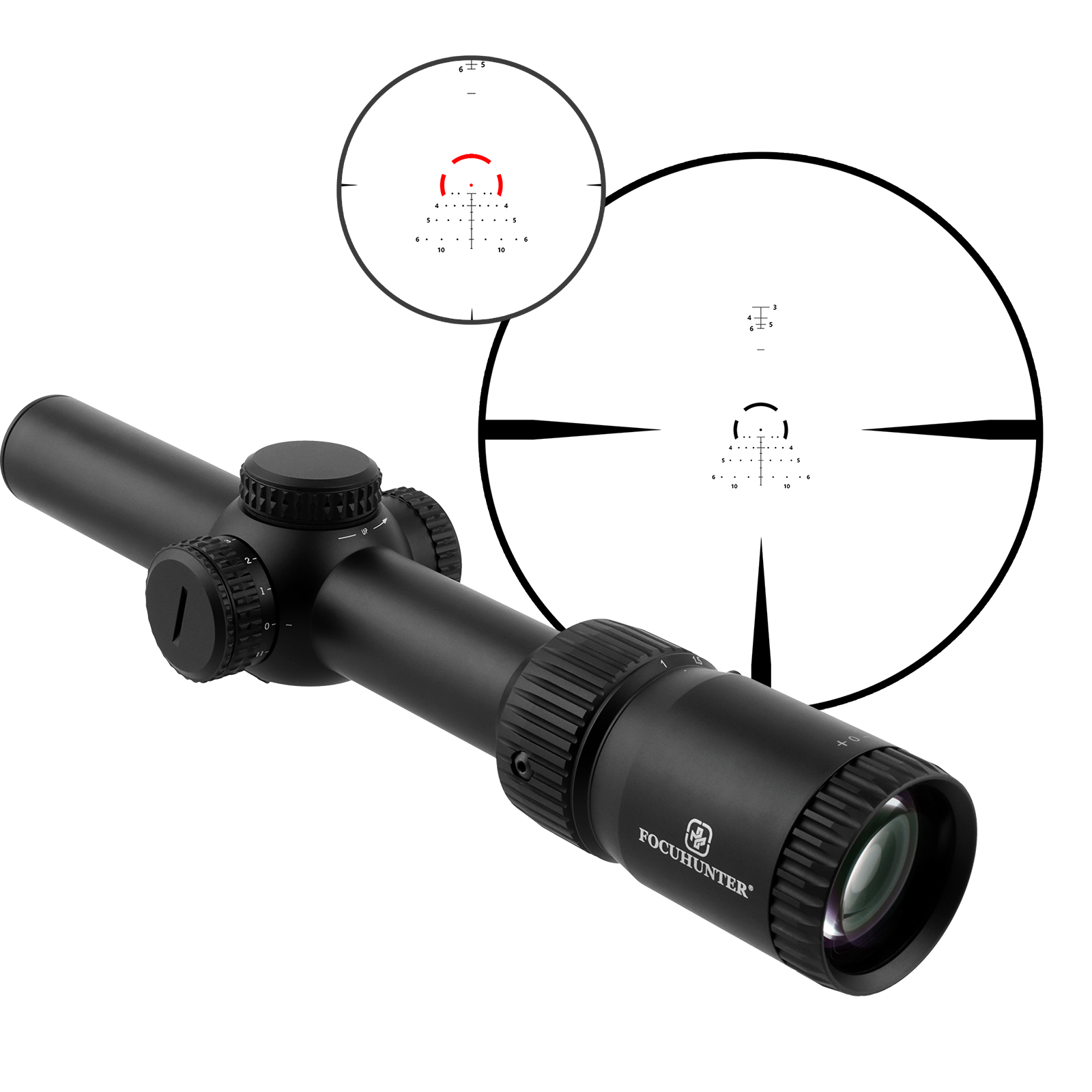

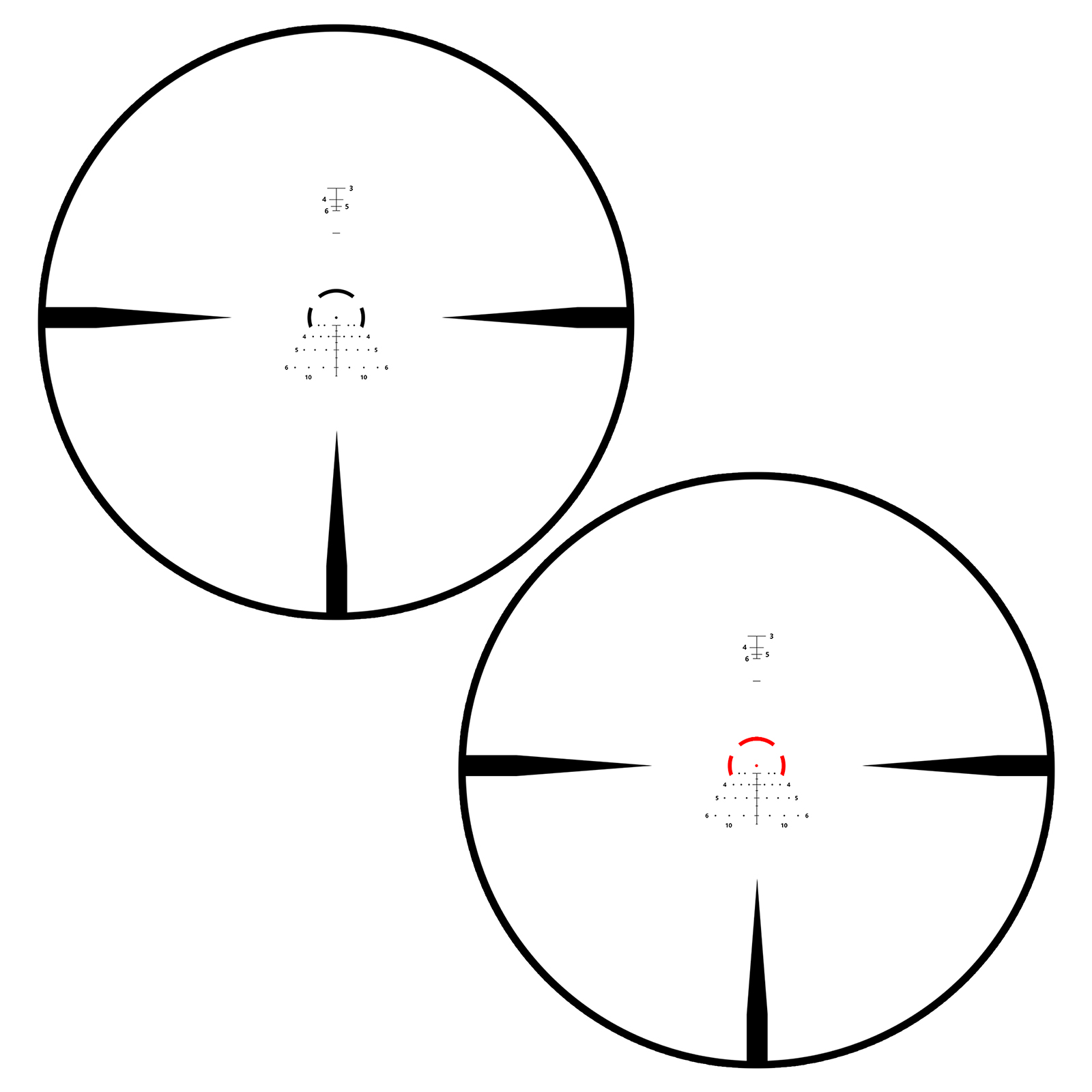

Reticle Type:Glass Etched
Illumination Color:Red
Brightness Control:11 levels
Waterproof:Ip67
Recoil resistance:1200 G Forces
Whether it is anti-fog:Yes
Whether to fast adjust eyepiece:Yes
Parallax correction code:100 yards
Turret Style: Capped
Click value/adjustment mode:1/2MOA
ELEVATION ADJUSTMENT:140MOA
WINDAGE ADJUSTMENT:140MOA
TRAVEL PER ROTATION:30MOA
Exit pupil distance:87mm-76mm，3.42″-2.99″
Exit pupil diameter:Ø2.3-Ø12
FOV @ 1x:43′, 21 deg
FOV @ 8x:14′, 2 deg
The eyepiece barrel is:46mm
The viewing range of the fast adjustable eyepiece is:-2.2dpr– +3.2dpr
Operation temperature range:-20℃~+60℃
Storage temperature range:-20℃~+60℃
